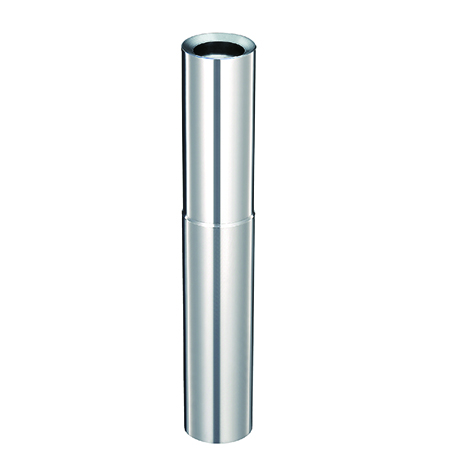

| Features: |
|
1. X-WHEX has the necking design. Use K Spanner to assemble the head mill and the shank.
|
|
2. The head mill and the shank are made of solid carbide,which improves vibration resistance when processing.
|
|
3. Shank sizes are available from D8 to D32mm.
|
|
4. Shank length is available from 60 to 300mm.
|
|
5. Modular design not only reduces the materials but also save the cost for customers. One shank can combine with flat end mills, corner-radius end mills, ball nose end mills and chamfering end mills.
|
|
6. When the head mill combining with the shortest shank, it can be used as one-piece-formed end mill. When the head mill combining with longer shank, it can implement the large depth of cutting.
|
|
7. Widely used in aerospace and automotive industry.
|
| Directions: |
|
1. Please reference the Nm value on "K Spanner" when assembling the exchangeable head mill and shank.
|
|
2. The head mill and the shank are both made of solid carbide. If K Spanner is unavailable when assembling, please fix both sides manually and slightly. The part will be strengthened when milling.
|
|
3. Reminder: Customer may breake the thread of the head mill because of exerting himself too much when assembling.
|
| Type No. | Neck Dia | O.A.L. | Effective Length | Shank Dia. | Thread |
|---|---|---|---|---|---|
| D2 | L1 | L2 | D1 | M | |
| X-WHEX-080060 | 7.8 | 60 | 15 | 8.0 | M5-3P |
| X-WHEX-080075 | 7.8 | 75 | 20 | 8.0 | M5-3P |
| X-WHEX-080100 | 7.8 | 100 | 20 | 8.0 | M5-3P |
| X-WHEX-100060 | 9.8 | 60 | 15 | 10.0 | M7-3P |
| X-WHEX-100075 | 9.8 | 75 | 20 | 10.0 | M7-3P |
| X-WHEX-100100 | 9.8 | 100 | 20 | 10.0 | M7-3P |
| X-WHEX-100150 | 9.8 | 150 | 40 | 10.0 | M7-3P |
| X-WHEX-120060 | 11.7 | 60 | 15 | 12.0 | M8-3P |
| X-WHEX-120080 | 11.7 | 80 | 20 | 12.0 | M8-3P |
| X-WHEX-120100 | 11.7 | 100 | 60 | 12.0 | M8-3P |
| X-WHEX-120150 | 11.7 | 150 | 90 | 12.0 | M8-3P |
| X-WHEX-160060 | 15.6 | 60 | 15 | 16.0 | M10-3P |
| X-WHEX-160080 | 15.6 | 80 | 30 | 16.0 | M10-3P |
| X-WHEX-160100 | 15.6 | 100 | 60 | 16.0 | M10-3P |
| X-WHEX-160150 | 15.6 | 150 | 90 | 16.0 | M10-3P |
| X-WHEX-160200 | 15.6 | 200 | 120 | 16.0 | M10-3P |
| X-WHEX-200060 | 19.5 | 60 | 20 | 20.0 | M12-3P |
| X-WHEX-200080 | 19.5 | 80 | 40 | 20.0 | M12-3P |
| X-WHEX-200100 | 19.5 | 100 | 60 | 20.0 | M12-3P |
| X-WHEX-200150 | 19.5 | 150 | 90 | 20.0 | M12-3P |
| X-WHEX-200200 | 19.5 | 200 | 120 | 20.0 | M12-3P |
| X-WHEX-200250 | 19.5 | 250 | 150 | 20.0 | M12-3P |
| X-WHEX-200300 | 19.5 | 300 | 180 | 20.0 | M12-3P |
| X-WHEX-250100 | 24.4 | 100 | 50 | 25.0 | M16-3P |
| X-WHEX-250150 | 4.4 | 150 | 90 | 25.0 | M16-3P |
| X-WHEX-250200 | 24.4 | 200 | 120 | 25.0 | M16-3P |
| X-WHEX-250250 | 24.4 | 250 | 150 | 25.0 | M16-3P |
| X-WHEX-250300 | 24.4 | 300 | 180 | 25.0 | M16-3P |
| X-WHEX-320100 | 31.2 | 100 | 50 | 32.0 | M20-3P |
| X-WHEX-320150 | 31.2 | 150 | 90 | 32.0 | M20-3P |
| X-WHEX-320200 | 31.2 | 200 | 120 | 32.0 | M20-3P |
| X-WHEX-320250 | 31.2 | 250 | 150 | 32.0 | M20-3P |
| X-WHEX-320300 | 31.2 | 300 | 180 | 32.0 | M20-3P |
