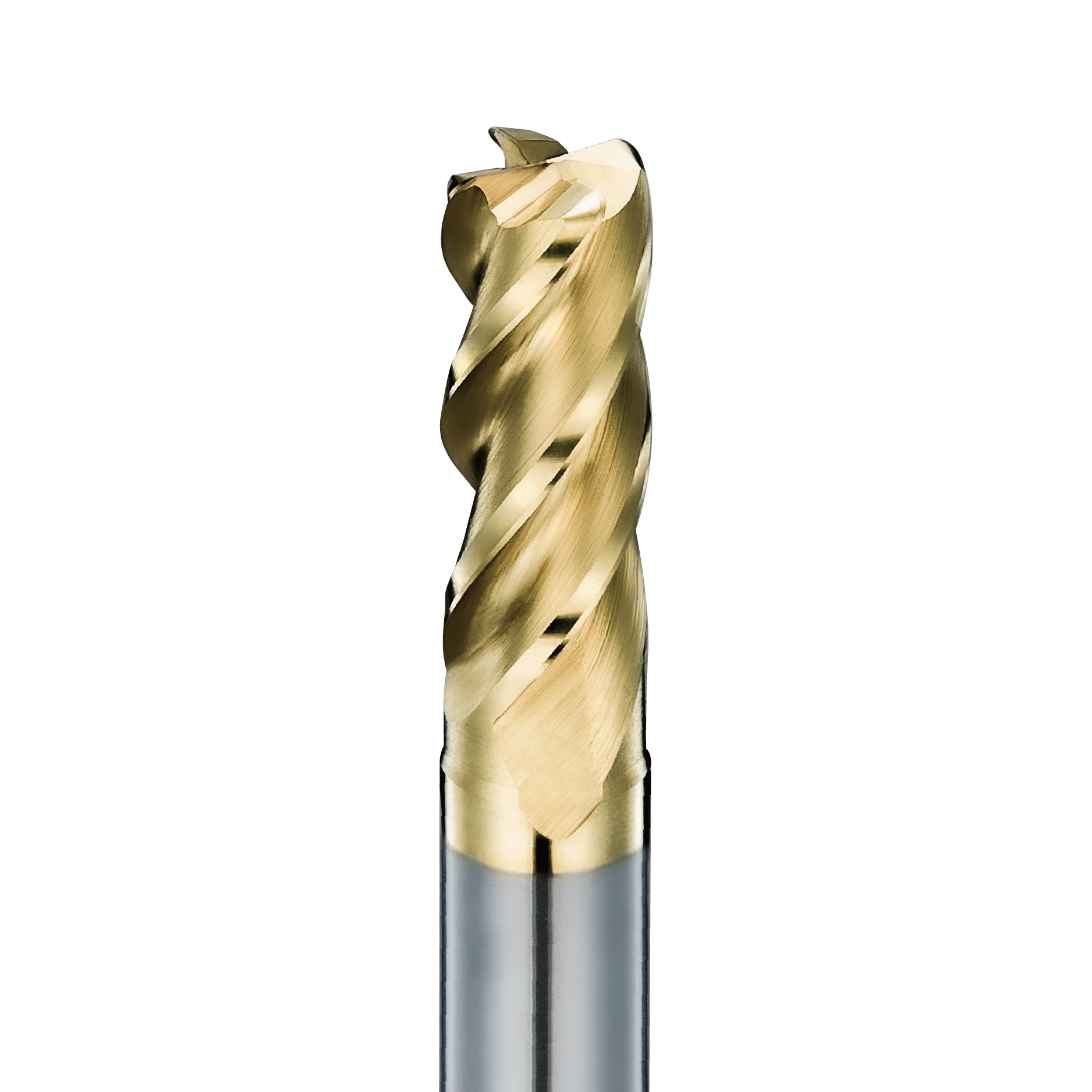

| 刀具特色: |
|---|
|
1.Overcoming the challenges of machining Inconel 718 and Nickel-based superalloy, with excellent performance and tool life.
|
|
2. Special geometry design with good rigidity and better vibration resistance during processing.
|
| 3.The new composite G18 coating design with better wear-resistant. |
| 4.Vc value can reach 50 (m/min) and above, when machining Inconel 718 and nickel-based superalloy. |
| Working Materials Hardness Level: Extremely difficult-to-cut materials, such as Inconel 718, nickel-based superalloys, stainless steel, and titanium alloys. |
Applicable Milling Methods:  Rough milling, semi-finish milling, finish milling |
| Applicable Coolant Ways: Wet |
| Type NO. | Diameter | Neck Dia | Corner Raidus | Flute Length | Effective Length | O.A.L | Shank Dia |
|---|---|---|---|---|---|---|---|
| D1 | D3 | R | L1 | L2 | L3 | D2 | |
| KYR0302 | 3 | 2.85 | 0.2 | 8 | 12 | 50 | 6 |
| KYR0305 | 3 | 2.85 | 0.5 | 8 | 12 | 50 | 6 |
| KYR0402 | 4 | 3.8 | 0.2 | 11 | 16 | 50 | 6 |
| KYR0405 | 4 | 3.8 | 0.5 | 11 | 16 | 50 | 6 |
| KYR0505 | 5 | 4.8 | 0.5 | 13 | 18 | 50 | 6 |
| KYR0510 | 5 | 4.8 | 1.0 | 13 | 18 | 50 | 6 |
| KYR0602 | 6 | 5.8 | 0.2 | 13 | 19 | 50 | 6 |
| KYR0605 | 6 | 5.8 | 0.5 | 13 | 19 | 50 | 6 |
| KYR0610 | 6 | 5.8 | 1.0 | 13 | 19 | 50 | 6 |
| KYR0615 | 6 | 5.8 | 1.5 | 13 | 19 | 50 | 6 |
| KYR0805 | 8 | 7.7 | 0.5 | 20 | 25 | 60 | 8 |
| KYR0810 | 8 | 7.7 | 1.0 | 20 | 25 | 60 | 8 |
| KYR0815 | 8 | 7.7 | 1.5 | 20 | 25 | 60 | 8 |
| KYR1005 | 10 | 9.7 | 0.5 | 22 | 30 | 75 | 10 |
| KYR1010 | 10 | 9.7 | 1.0 | 22 | 30 | 75 | 10 |
| KYR1015 | 10 | 9.7 | 1.5 | 22 | 30 | 75 | 10 |
| KYR1020 | 10 | 9.7 | 2.0 | 22 | 30 | 75 | 10 |
| KYR1030 | 10 | 9.7 | 3.0 | 22 | 30 | 75 | 10 |
| KYR1205 | 12 | 11.6 | 0.5 | 26 | 36 | 75 | 12 |
| KYR1210 | 12 | 11.6 | 1.0 | 26 | 36 | 75 | 12 |
| KYR1215 | 12 | 11.6 | 1.5 | 26 | 36 | 75 | 12 |
| KYR1220 | 12 | 11.6 | 2.0 | 26 | 36 | 75 | 12 |
| KYR1230 | 12 | 11.6 | 3.0 | 26 | 36 | 75 | 12 |
| KYR1605 | 16 | 15.5 | 0.5 | 36 | 42 | 100 | 16 |
| KYR1610 | 16 | 15.5 | 1.0 | 36 | 42 | 100 | 16 |
| KYR1620 | 16 | 15.5 | 2.0 | 36 | 42 | 100 | 16 |
| KYR1630 | 16 | 15.5 | 3.0 | 36 | 42 | 100 | 16 |
