LNX

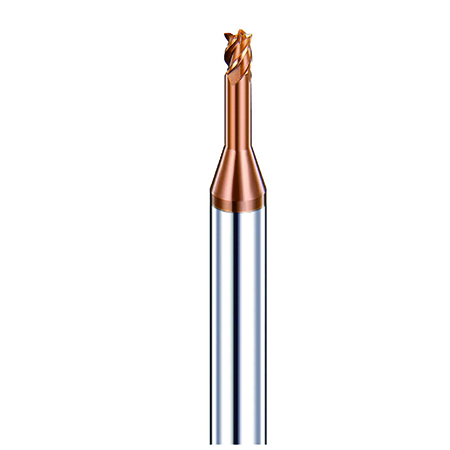

Micro Diameter & Long Neck Series Endmill

End Mills

  • MG
  • 0.6
  • 螺旋角35方
  • 縮頸2
  • 4F 00
  • HRc60
  • 鍍層G12
ADD INQUIRY
Features:
    1. The 4 flutes long neck of flat endmill design, which is suitable for steel materials hardness up to HRc48.
    2. The minimum diameter is 1mm.
Working Materials Hardness Level:   Good at steel material (HRc 22~48). E.g. SUS304,S45C,P20,NAK80 etc.
Applicable Milling Methods:  Finishing   Semi-finishing
Applicable Coolant Ways:  Emulsion Machining , Oil  Machining     MQL (Mist)  Machining      Dry Machining

Type No. Diameter Neck Dia Flute Length Effective Length O.A.L. Shank Dia.
D1 D3 L1 L2 L3 D2
LNX1006 1.0 0.95 1.5 6 50 4
LNX1008 1.0 0.95 1.5 8 50 4
LNX1010 1.0 0.95 1.5 10 50 4
LNX1012 1.0 0.95 1.5 12 50 4
LNX1508 1.5 1.45 2 8 50 4
LNX1510 1.5 1.45 2 10 50 4
LNX1512 1.5 1.45 2 12 50 4
LNX1516 1.5 1.45 2 16 50 4
LNX2008 2.0 1.92 3 8 50 4
LNX2010 2.0 1.92 3 10 50 4
LNX2012 2.0 1.92 3 12 50 4
LNX2016 2.0 1.92 3 16 50 4
LNX2020 2.0 1.92 3 20 50 4
LNX2510 2.5 2.42 3 10 50 4
LNX2512 2.5 2.42 3 12 50 4
LNX2516 2.5 2.42 3 16 50 4
LNX2520 2.5 2.42 3 20 50 4
LNX3010 3.0 2.90 4 10 50 6
LNX3012 3.0 2.90 4 12 50 6
LNX3016 3.0 2.90 4 16 50 6
LNX3020 3.0 2.90 4 20 60 6
LNX3025 3.0 2.90 4 25 60 6
