LNE

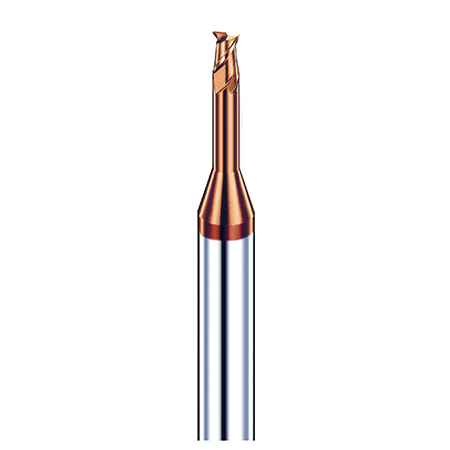

Micro Diameter & Long Neck Series Endmill

End Mills

  • MG
  • 0.6
  • 螺旋角35方
  • 縮頸2
  • 2FW
  • HRc60
  • 鍍層G12
ADD INQUIRY
Features:
    1. The 2 flutes long neck of ball nose endmill design, which is suitable for 3D cutting of steel materials hardness up to HRc48.
    2. The minimum diameter is 0.5mm.
Working Materials Hardness Level:   Good at steel material (HRc 22~48). E.g. SUS304,S45C,P20,NAK80 etc.
Applicable Milling Methods:  Finishing   Semi-finishing
Applicable Coolant Ways:  Emulsion Machining , Oil  Machining      MQL (Mist)  Machining    Dry Machining

Type No. Diameter Neck Dia Flute Length Effective Length O.A.L. Shank Dia.
D1 D3 L1 L2 L3 D2
LNE0502 0.5 0.46 0.8 2 50 4
LNE0504 0.5 0.46 0.8 4 50 4
LNE0506 0.5 0.46 0.8 6 50 4
LNE1006 1.0 0.95 1.5 6 50 4
LNE1008 1.0 0.95 1.5 8 50 4
LNE1010 1.0 0.95 1.5 10 50 4
LNE1012 1.0 0.95 1.5 12 50 4
LNE1508 1.5 1.45 2 8 50 4
LNE1510 1.5 1.45 2 10 50 4
LNE1512 1.5 1.45 2 12 50 4
LNE1516 1.5 1.45 2 16 50 4
LNE2008 2.0 1.92 3 8 50 4
LNE2010 2.0 1.92 3 10 50 4
LNE2012 2.0 1.92 3 12 50 4
LNE2016 2.0 1.92 3 16 50 4
LNE2020 2.0 1.92 3 20 50 4
LNE2510 2.5 2.42 3 10 50 4
LNE2512 2.5 2.42 3 12 50 4
LNE2516 2.5 2.42 3 16 50 4
LNE2520 2.5 2.42 3 20 50 4
LNE3010 3.0 2.90 4 10 50 6
LNE3012 3.0 2.90 4 12 50 6
LNE3016 3.0 2.90 4 16 50 6
LNE3020 3.0 2.90 4 20 60 6
LNE3025 3.0 2.90 4 25 60 6
