GE

Graphite Cutting Series

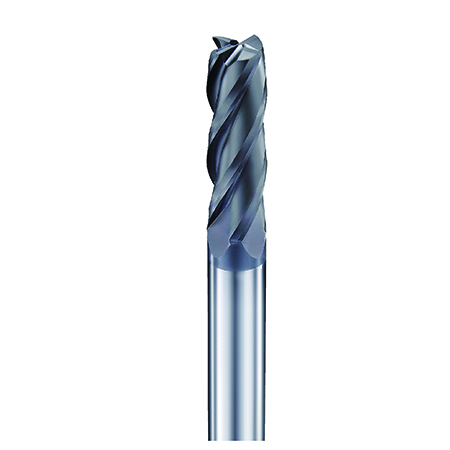

End Mills

  • MG
  • 0.6
  • 螺旋角30方
  • 4F 00
  • 鍍層Diamond
Features:
    1. Special Diamond "CVD coating" is extremely wear-resistant and has a long tool life.
    2. 4 flutes of flat endmill design is specially used for milling of graphite and composite materials.
Working Materials Hardness Level:   Good at graphite and composite materials. E.g. Graphite,CFRP,GFRP etc.
Applicable Milling Methods:  Finishing ,Semi-finishing and Roughing
Applicable Coolant Ways:   Dry Machining

Type No. Diameter Flute Length O.A.L. Shank Dia.
D1 L1 L3 D2
GE0304 3.0 12 50 3
GE0404 4.0 15 50 4
GE0604 6.0 20 60 6
GE0804 8.0 22 60 8
GE1004 10.0 25 75 10

GE0304M 3.0 12 75 3
GE0404M 4.0 15 75 4
GE0604M 6.0 30 80 6
GE0804M 8.0 32 100 8
GE1004M 10.0 40 100 10
