| Features: |
|

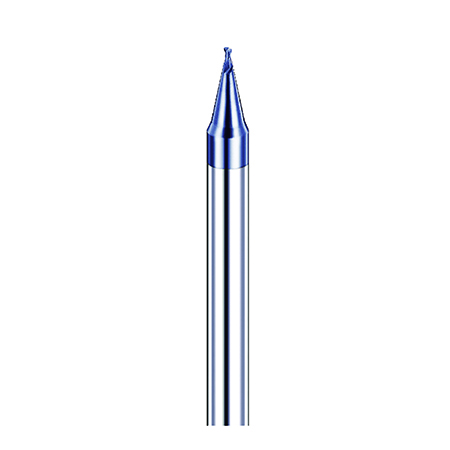

1. Economical "Micro diameter" 2 flutes endmill design. Good at general steels with hardness up to HRc45.
|
|
2. Economical choice. Minimum diameter is 0.2mm.
|
| Working Materials Hardness Level: Good at steels with hardness up to HRc18~45. E.g. S45C,P20,NAK80,SUS304 etc. |
Applicable Milling Methods:  Finishing,Semi-finishing and Roughing |
Applicable Coolant Ways: MQL (Mist) and Dry Machining  Emulsion Machining and Oil Machining |
| Type No. | Diameter | Flute Length | O.A.L. | Shank Dia. |
|---|---|---|---|---|
| D1 | L1 | L3 | D2 | |
| DME0022 | 0.2 | 0.4 | 40 | 4 |
| DME0032 | 0.3 | 0.6 | 40 | 4 |
| DME0042 | 0.4 | 0.8 | 40 | 4 |
| DME0052 | 0.5 | 1.0 | 40 | 4 |
| DME0062 | 0.6 | 1.2 | 40 | 4 |
| DME0072 | 0.7 | 1.4 | 40 | 4 |
| DME0082 | 0.8 | 1.6 | 40 | 4 |
| DME0092 | 0.9 | 1.8 | 40 | 4 |
| DME0102 | 1.0 | 2.5 | 40 | 4 |
| DME0122 | 1.2 | 3.0 | 40 | 4 |
| DME0142 | 1.4 | 3.0 | 40 | 4 |
| DME0152 | 1.5 | 4.0 | 40 | 4 |
| DME0162 | 1.6 | 4.0 | 40 | 4 |
| DME0182 | 1.8 | 5.0 | 40 | 4 |
| DME0202 | 2.0 | 6.0 | 40 | 4 |
| DME0252 | 2.5 | 8.0 | 40 | 4 |
| DME0302 | 3.0 | 8.0 | 40 | 4 |
