| Features: |
|

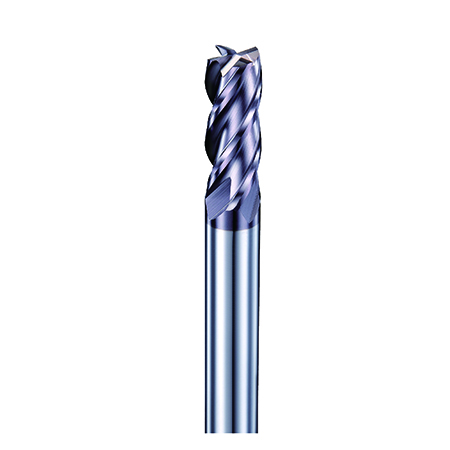

1. Economical 4 flutes flate endmill design. Good at general steels with hardness up to HRc45.
|
|
2. Economical choice.
|
| Working Materials Hardness Level: Good at steels with hardness up to HRc18~45. E.g. S45C,P20,NAK80,SUS304 etc. |
Applicable Milling Methods:  Finishing,Semi-finishing and Roughing |
Applicable Coolant Ways: MQL (Mist) and Dry Machining  Emulsion Machining and Oil Machining |
| Type No. | Diameter | Flute Length | O.A.L. | Shank Dia. |
|---|---|---|---|---|
| D1 | L1 | L3 | D2 | |
| DE0104 | 1.0 | 3 | 50 | 4 |
| DE0154 | 1.5 | 4 | 50 | 4 |
| DE0204 | 2.0 | 6 | 50 | 4 |
| DE0254 | 2.5 | 8 | 50 | 4 |
| DE0304 | 3.0 | 8 | 50 | 4 |
| DE0404 | 4.0 | 11 | 50 | 4 |
| DE0504 | 5.0 | 13 | 50 | 6 |
| DE0604 | 6.0 | 16 | 50 | 6 |
| DE0804 | 8.0 | 20 | 60 | 8 |
| DE1004 | 10.0 | 25 | 75 | 10 |
| DE1204 | 12.0 | 30 | 75 | 12 |
| DE1604 | 16.0 | 40 | 100 | 16 |
| DE2004 | 20.0 | 45 | 100 | 20 |
