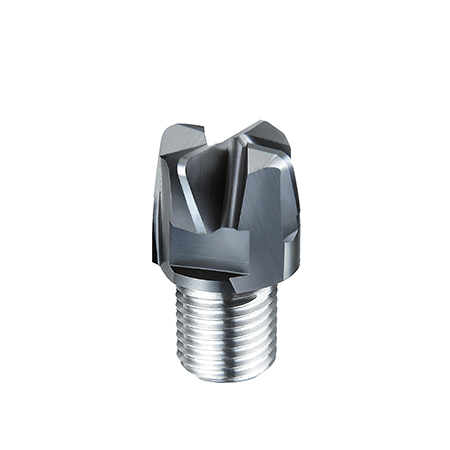

| Features: |
|
1. Special geometry design is suitable for surface and slot milling of high-hardness material.
|
|
2. The design is not suitable for side milling.
|
| Working Materials Hardness Level: Good at steels with hardness HRc48-65. E.g. SKD61(HRc52), S136(HRc52), SKD11(HRC62) etc. |
Applicable Milling Methods:  Roughing  Semi-finishing  Finishing |
| Applicable Coolant Ways: MQL (Mist) Machining Dry Machining Emulsion Machining and Oil Machining |
| Type No. | Diameter | Flute Length | Corner R | Neck Dia. | O.A.L. | Thread Size | Spanner Type No. |
|---|---|---|---|---|---|---|---|
| D1 | L1 | R | D2 | L2 | M | ||
| X-UEYR0810 | 8.0 | 3.5 | 1.0 | 7.8 | 10.1 | M5-3P | K08 |
| X-UEYR0820 | 8.0 | 3.5 | 2.0 | 7.8 | 10.1 | M5-3P | K08 |
| X-UEYR1010 | 10.0 | 4.0 | 1.0 | 9.8 | 11.1 | M7-3P | K10 |
| X-UEYR1020 | 10.0 | 4.0 | 2.0 | 9.8 | 11.1 | M7-3P | K10 |
| X-UEYR1220 | 12.0 | 5.0 | 2.0 | 11.7 | 13.8 | M8-3P | K12 |
| X-UEYR1230 | 12.0 | 5.0 | 3.0 | 11.7 | 13.8 | M8-3P | K12 |
| X-UEYR1620 | 16.0 | 6.5 | 2.0 | 15.6 | 14.7 | M10-3P | K16 |
| X-UEYR1630 | 16.0 | 6.5 | 3.0 | 15.6 | 14.7 | M10-3P | K16 |
| X-UEYR1640 | 16.0 | 6.5 | 4.0 | 15.6 | 14.7 | M10-3P | K16 |
| X-UEYR2030 | 20.0 | 8.0 | 3.0 | 19.5 | 18.1 | M12-3P | K20 |
| X-UEYR2050 | 20.0 | 8.0 | 5.0 | 19.5 | 18.1 | M12-3P | K20 |
