UNBX-2T

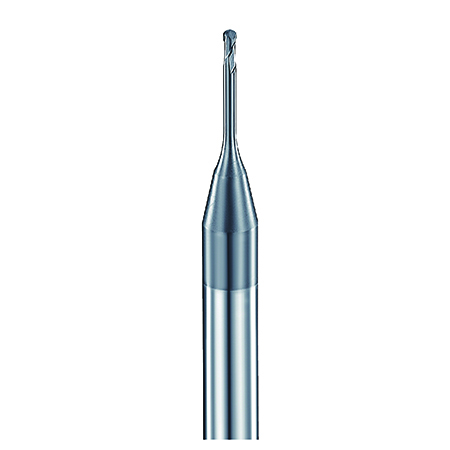

Micro Diameter & Long Neck Series Endmill

Ball Nose End Mills

  • MG-super
  • 0.2
  • 30
  • 縮頸1
  • 2F-1
  • HRc65
  • 鍍層G15
ADD INQUIRY
Features:
    1. The 4 flutes long neck of ball nose endmill design, which is suitable for 3D cutting of steel materials hardness HRc45~65.
    2. The minimum diameter is 0.2mm.
Working Materials Hardness Level:   Good at high-hardness steel material (HRc 45~65). E.g. SKD61(HRc52) ,S136(HRc52), SKD11(HRC62) etc.
Applicable Milling Methods:  Finishing  Semi-finishing     Roughing
Applicable Coolant Ways:  MQL (Mist)  Machining    Dry Machining    Emulsion Machining , Oil  Machining

Type No. Diameter Neck Dia Flute Length Effective Length O.A.L. Shank Dia.
D1 D3 L1 L2 L3 D2
UNBX0201 R0.1 0.18 0.3 1 50 4
UNBX0202 R0.1 0.18 0.3 2 50 4
UNBX0301 R0.15 0.26 0.4 1 50 4
UNBX0302 R0.15 0.26 0.4 2 50 4
UNBX0303 R0.15 0.26 0.4 3 50 4
UNBX0402 R0.2 0.36 0.6 2 50 4
UNBX0403 R0.2 0.36 0.6 3 50 4
UNBX0404 R0.2 0.36 0.6 4 50 4
UNBX0502 R0.25 0.46 0.8 2 50 4
UNBX0504 R0.25 0.46 0.8 4 50 4
UNBX0506 R0.25 0.46 0.8 6 50 4
UNBX0602 R0.3 0.56 0.9 2 50 4
UNBX0604 R0.3 0.56 0.9 4 50 4
UNBX0606 R0.3 0.56 0.9 6 50 4
UNBX0804 R0.4 0.76 1.2 4 50 4
UNBX0806 R0.4 0.76 1.2 6 50 4
UNBX0808 R0.4 0.76 1.2 8 50 4
UNBX1004 R0.5 0.95 1.5 4 50 4
UNBX1006 R0.5 0.95 1.5 6 50 4
UNBX1008 R0.5 0.95 1.5 8 50 4
UNBX1010 R0.5 0.95 1.5 10 50 4
UNBX1012 R0.5 0.95 1.5 12 50 4
UNBX1208 R0.6 1.15 2 8 50 4
UNBX1212 R0.6 1.15 2 12 50 4
UNBX1506 R0.75 1.45 2 6 50 4
UNBX1508 R0.75 1.45 2 8 50 4
UNBX1510 R0.75 1.45 2 10 50 4
UNBX1512 R0.75 1.45 2 12 50 4
UNBX1516 R0.75 1.45 2 16 50 4
UNBX1520 R0.75 1.45 2 20 50 4
UNBX1608 R0.8 1.54 2.5 8 50 4
UNBX1612 R0.8 1.54 2.5 12 50 4
UNBX1616 R0.8 1.54 2.5 16 50 4
UNBX2008 R1.0 1.92 3 8 50 4
UNBX2010 R1.0 1.92 3 10 50 4
UNBX2012 R1.0 1.92 3 12 50 4
UNBX2016 R1.0 1.92 3 16 50 4
UNBX2020 R1.0 1.92 3 20 50 4
UNBX3008 R1.5 2.9 4 8 50 6
UNBX3010 R1.5 2.9 4 10 50 6
UNBX3012 R1.5 2.9 4 12 50 6
UNBX3016 R1.5 2.9 4 16 50 6
UNBX3020 R1.5 2.9 4 20 60 6
UNBX3025 R1.5 2.9 4 25 60 6
UNBX4010 R2.0 3.88 5 10 75 6
UNBX4015 R2.0 3.88 5 15 75 6
UNBX4020 R2.0 3.88 5 20 75 6
UNBX4025 R2.0 3.88 5 25 75 6
UNBX4030 R2.0 3.88 5 30 75 6
