META

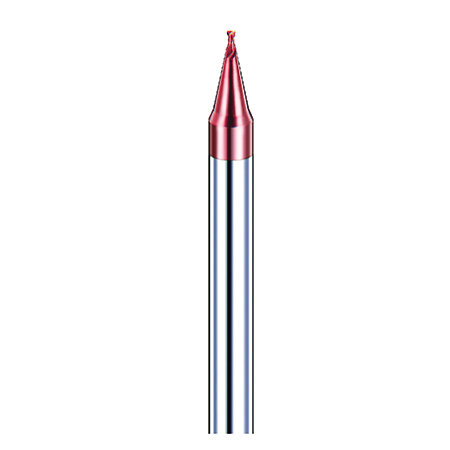

Micro Diameter & Long Neck Series Endmill

End Mills

  • MG-super
  • 0.4
  • 螺旋角35方
  • 2FW
  • HRc60
  • 鍍層G12
ADD INQUIRY
Features:
    1. The micro diameter of ball nose endmill design, which is suitable for 3D cutting of steel materials hardness HRc48~65.
    2. The minimum diameter is 0.2mm.
Working Materials Hardness Level:   Good at steel material (HRc 22~52). E.g. SUS304, P20, NAK80, SKD61(HRc52) etc.
Applicable Milling Methods:  Finishing  Semi-finishing
Applicable Coolant Ways:  Emulsion Machining , Oil  Machining     MQL (Mist)  Machining   Dry Machining

Type No. Diameter Flute Length O.A.L. Shank Dia.
D1 L1 L3 D2
META0022 0.2 0.4 50 4
META0032 0.3 0.6 50 4
META0042 0.4 0.8 50 4
META0052 0.5 1.0 50 4
META0062 0.6 1.2 50 4
META0072 0.7 1.4 50 4
META0082 0.8 1.6 50 4
META0092 0.9 1.8 50 4
META0102 1.0 2.5 50 4
META0122 1.2 3.0 50 4
META0142 1.4 3.0 50 4
META0152 1.5 4.0 50 4
META0162 1.6 4.0 50 4
META0182 1.8 5.0 50 4
META0202 2.0 6.0 50 4
META0252 2.5 8.0 50 4
META0302 3.0 8.0 50 4
