UNE

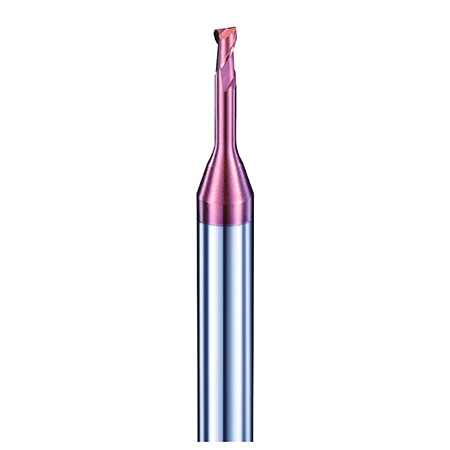

Micro Diameter & Long Neck Series Endmill

End Mills

  • MG-super
  • 0.2
  • 螺旋角35方
  • 縮頸3
  • R
  • 2FW
  • HRc65
  • 鍍層G12
ADD INQUIRY
Features:
    1. The 2 flutes long neck of flat endmill design, which is suitable for steel materials hardness HRc45~65.
    2. The minimum diameter is 1mm.
Working Materials Hardness Level:   Good at high-hardness steel material (HRc 48~65). E.g. SKD61(HRc52) ,S136(HRc52), SKD11(HRC62) etc.
Applicable Milling Methods:  Finishing   Semi-finishing  Roughing
Applicable Coolant Ways:  MQL (Mist)  Machining     Emulsion Machining , Oil  Machining      Dry Machining

Type No. Diameter Neck Dia Corner R Flute Length Effective Length O.A.L. Shank Dia.
D1 D3 R L1 L2 L3 D2
UNE1004 1.0 0.95 0.1 1.5 4 50 6
UNE1006 1.0 0.95 0.1 1.5 6 50 6
UNE1008 1.0 0.95 0.1 1.5 8 50 6
UNE1010 1.0 0.95 0.1 1.5 10 50 6
UNE1012 1.0 0.95 0.1 1.5 12 50 6
UNE1504 1.5 1.44 0.1 1.5 4 50 6
UNE1508 1.5 1.44 0.1 1.5 8 50 6
UNE1510 1.5 1.44 0.1 1.5 10 50 6
UNE1512 1.5 1.44 0.1 1.5 12 50 6
UNE2008 2.0 1.92 0.2 2 8 50 6
UNE2010 2.0 1.92 0.2 2 10 50 6
UNE2012 2.0 1.92 0.2 2 12 50 6
UNE2016 2.0 1.92 0.2 2 16 50 6
UNE3008 3.0 2.90 0.2 3 8 50 6
UNE3012 3.0 2.90 0.2 3 12 50 6
UNE3016 3.0 2.90 0.2 3 16 50 6
UNE3020 3.0 2.90 0.2 3 20 50 6
UNE4010 4.0 3.88 0.2 4 10 50 6
UNE4016 4.0 3.88 0.2 4 16 50 6
UNE4020 4.0 3.88 0.2 4 20 60 6
