DAO

Carbide Drills Series

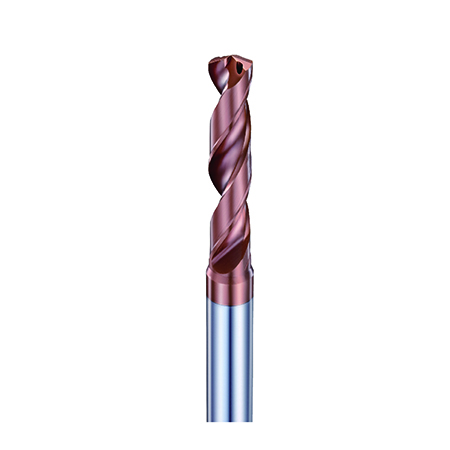

Carbide Drills

  • MG
  • 0.6
  • 螺旋角30方
  • 3D
  • 鑽頂角140
  • 2flutes4
  • HRc52
  • 鍍層G10
  • XR
  • P
ADD INQUIRY
Features:
    1. Internal Coolant Holes and 140° drill point angle design, which features good chip evacuation, machining performance and longer tool life.
    2. Widely used in stainless, titanium alloy, copper,aluminum, general steel and high-hardness materials.
    3. 3D flutes length design with full range of specification.
Working Materials Hardness Level:   Good at difficult-to-cut materials: copper, aluminum, general steel and high-hardness materials (HRc 48~65).
Applicable Milling Methods:  Drilling
Applicable Coolant Ways:  Emulsion Machining

Type No. Diameter Flute Length O.A.L. Shank Dia.
D1 L1 L3 D2
DAO030 3.0 20 62 6
DAO031 3.1 20 62 6
DAO032 3.2 20 62 6
DAO033 3.3 20 62 6
DAO034 3.4 20 62 6
DAO035 3.5 20 62 6
DAO036 3.6 20 62 6
DAO037 3.7 20 62 6
DAO038 3.8 24 66 6
DAO039 3.9 24 66 6
DAO040 4.0 24 66 6
DAO041 4.1 24 66 6
DAO042 4.2 24 66 6
DAO043 4.3 24 66 6
DAO044 4.4 24 66 6
DAO045 4.5 24 66 6
DAO046 4.6 24 66 6
DAO047 4.7 24 66 6
DAO048 4.8 28 66 6
DAO049 4.9 28 66 6
DAO050 5.0 28 66 6
DAO051 5.1 28 66 6
DAO052 5.2 28 66 6
DAO053 5.3 28 66 6
DAO054 5.4 28 66 6
DAO055 5.5 28 66 6
DAO056 5.6 28 66 6
DAO057 5.7 28 66 6
DAO058 5.8 28 66 6
DAO059 5.9 28 66 6
DAO060 6.0 28 66 6
DAO061 6.1 34 79 8
DAO062 6.2 34 79 8
DAO063 6.3 34 79 8
DAO064 6.4 34 79 8
DAO065 6.5 34 79 8
DAO066 6.6 34 79 8
DAO067 6.7 34 79 8
DAO068 6.8 34 79 8
DAO069 6.9 34 79 8
DAO070 7.0 34 79 8
DAO071 7.1 41 79 8
DAO072 7.2 41 79 8
DAO073 7.3 41 79 8
DAO074 7.4 41 79 8
DAO075 7.5 41 79 8
DAO076 7.6 41 79 8
DAO077 7.7 41 79 8
DAO078 7.8 41 79 8
DAO079 7.9 41 79 8
DAO080 8.0 41 79 8
DAO081 8.1 47 89 10
DAO082 8.2 47 89 10
DAO083 8.3 47 89 10
DAO084 8.4 47 89 10
DAO085 8.5 47 89 10
DAO086 8.6 47 89 10
DAO087 8.7 47 89 10
DAO088 8.8 47 89 10
DAO089 8.9 47 89 10
DAO090 9.0 47 89 10
DAO091 9.1 47 89 10
DAO092 9.2 47 89 10
DAO093 9.3 47 89 10
DAO094 9.4 47 89 10
DAO095 9.5 47 89 10
DAO096 9.6 47 89 10
DAO097 9.7 47 89 10
DAO098 9.8 47 89 10
DAO099 9.9 47 89 10
DAO100 10.0 47 89 10
DAO101 10.1 55 102 12
DAO102 10.2 55 102 12
DAO103 10.3 55 102 12
DAO104 10.4 55 102 12
DAO105 10.5 55 102 12
DAO106 10.6 55 102 12
DAO107 10.7 55 102 12
DAO108 10.8 55 102 12
DAO109 10.9 55 102 12
DAO110 11.0 55 102 12
DAO111 11.1 55 102 12
DAO112 11.2 55 102 12
DAO113 11.3 55 102 12
DAO114 11.4 55 102 12
DAO115 11.5 55 102 12
DAO116 11.6 55 102 12
DAO117 11.7 55 102 12
DAO118 11.8 55 102 12
DAO119 11.9 55 102 12
DAO120 12.0 55 102 12
DAO125 12.5 60 107 14
DAO130 13.0 60 107 14
DAO135 13.5 60 107 14
DAO140 14.0 60 107 14
DAO145 14.5 65 115 16
DAO150 15.0 65 115 16
DAO155 15.5 65 115 16
DAO160 16.0 65 115 16
DAO165 16.5 73 123 18
DAO170 17.0 73 123 18
DAO175 17.5 73 123 18
DAO180 18.0 73 123 18
DAO185 18.5 79 131 20
DAO190 19.0 79 131 20
DAO195 19.5 79 131 20
DAO200 20.0 79 131 20
