| Features: |
|
1. Special Diamond "CVD coating" is extremely wear-resistant and has a long tool life.
|
|

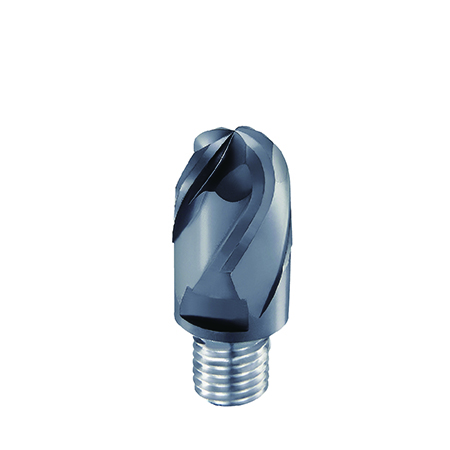

2. The head of 4 flutes of ball nose endmill design, is specially used for 3D milling of graphite and composite materials.
|
|
3. It fits the Solid Carbide Shank of Exchangeable Head Endmill 2 Series.
|
| Working Materials Hardness Level: Good at graphite and composite materials. E.g. Graphite,CFRP,GFRP etc. |
Applicable Milling Methods:  Finishing ,Semi-finishing |
| Applicable Coolant Ways: Dry Machining |
| Type No. | Diameter | Flute Length | Neck Dia. | O.A.L. | Thread Size | Spanner Type No. |
|---|---|---|---|---|---|---|
| D1 | L1 | D2 | L2 | M | ||
| X-GB0804 | R4.0 | 8 | 7.8 | 12.1 | M5-3P | K08 |
| X-GB1004 | R5.0 | 10 | 9.8 | 16.1 | M7-3P | K10 |
| X-GB1204 | R6.0 | 12 | 11.7 | 20.3 | M8-3P | K12 |
| X-GB1604 | R8.0 | 16 | 15.6 | 25.7 | M10-3P | K16 |
