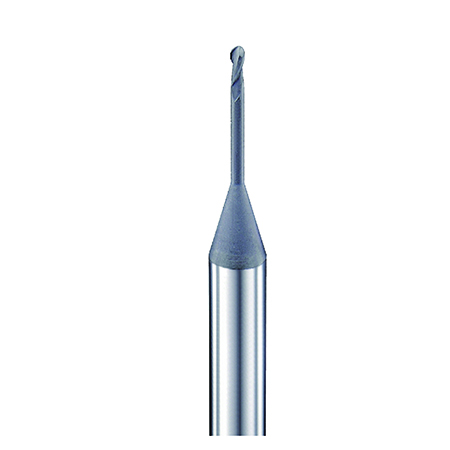

GNB
Graphite Cutting Series
| Type No. |
Diameter |
Neck Dia |
Flute Length |
Effective Length |
O.A.L. |
Shank Dia. |
| D1 |
D3 |
L1 |
L2 |
L3 |
D2 |
| GNB0504 |
R0.25 |
0.46 |
1.5 |
4 |
50 |
4 |
| GNB0506 |
R0.25 |
0.46 |
1.5 |
6 |
50 |
4 |
| GNB0604 |
R0.3 |
0.55 |
2.0 |
4 |
50 |
4 |
| GNB0606 |
R0.3 |
0.55 |
2.0 |
6 |
50 |
4 |
| GNB0806 |
R0.4 |
0.75 |
2.0 |
6 |
50 |
4 |
| GNB0808 |
R0.4 |
0.75 |
2.0 |
8 |
50 |
4 |
| GNB1006 |
R0.5 |
0.95 |
2.5 |
6 |
50 |
4 |
| GNB1010 |
R0.5 |
0.95 |
2.5 |
10 |
50 |
4 |
| GNB1016 |
R0.5 |
0.95 |
2.5 |
16 |
50 |
4 |
| GNB1508 |
R0.75 |
1.44 |
3.0 |
8 |
50 |
4 |
| GNB1512 |
R0.75 |
1.44 |
3.0 |
12 |
50 |
4 |
| GNB1516 |
R0.75 |
1.44 |
3.0 |
16 |
50 |
4 |
| GNB1520 |
R0.75 |
1.44 |
3.0 |
20 |
50 |
4 |
| GNB2010 |
R1.0 |
1.92 |
3.0 |
10 |
50 |
4 |
| GNB2016 |
R1.0 |
1.92 |
3.0 |
16 |
50 |
4 |
| GNB2020 |
R1.0 |
1.92 |
3.0 |
20 |
50 |
4 |
| GNB3015 |
R1.5 |
2.90 |
4.5 |
15 |
60 |
4 |
| GNB3030 |
R1.5 |
2.90 |
4.5 |
30 |
75 |
4 |
| GNB4025 |
R2.0 |
3.90 |
6.0 |
25 |
60 |
6 |
| GNB4035 |
R2.0 |
3.90 |
6.0 |
35 |
75 |
6 |
| GNB6050 |
R3.0 |
5.80 |
9.0 |
50 |
100 |
6 |
