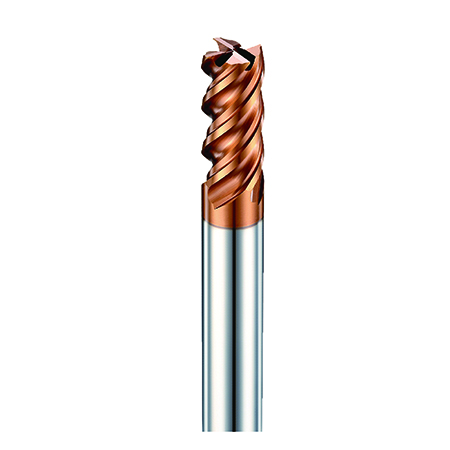

EPZ-4T

Carbon Steel Cutting Series

End Mills

  • MG
  • 0.6
  • 螺旋角45方 00
  • 4F 00
  • HRc55
  • G7
Features:
    1. G7 coating is specially designed for milling steel with higher carbon content, and it has long tool life.
    2. The unequal space of 4 flutes flat endmill design is suitable for general steel up to HRc45.  It has high vibration resistance level and high efficiency.
Working Materials Hardness Level:   Good at steel material (HRc 18~45). E.g. S45C,SUS304, P20,NAK80 etc.
Applicable Milling Methods:  Finishing,Semi-finishing and Roughing
Applicable Coolant Ways:  Emulsion and Oil Machining   MQL (Mist) and Dry Machining

Type No. Diameter Flute Length O.A.L. Shank Dia.
D1 L1 L3 D2
EPZ0304 3.0 6 50 6
EPZ0404 4.0 9 50 6
EPZ0504 5.0 11 50 6
EPZ0604 6.0 13 50 6
EPZ0804 8.0 16 60 8
EPZ1004 10.0 22 75 10
EPZ1204 12.0 26 75 12
