MSB

Micro Diameter & Long Neck Series Endmill

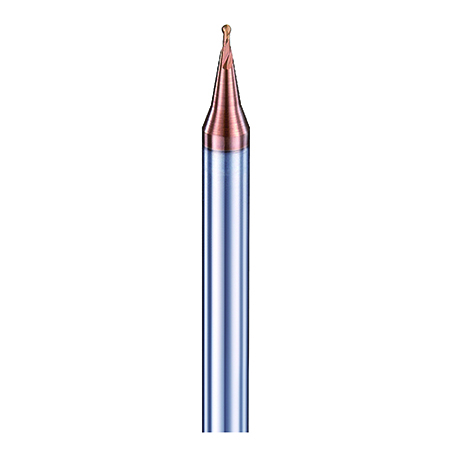

Ball Nose End Mills

  • MG-super
  • 0.4
  • 螺旋角30圓
  • 2FR
  • HRc60
  • G12
ADD INQUIRY
Features:
    1. The micro diameter of ball nose endmill design, which is suitable for 3D cutting of steel materials hardness up to HRc52.
    2. The minimum diameter is 0.3mm.
Working Materials Hardness Level:   Good at steel material (HRc 22~52). E.g. SUS304, P20, NAK80, SKD61(HRc52) etc.
Applicable Milling Methods:  Finishing  Semi-finishing
Applicable Coolant Ways:  Emulsion Machining , Oil  Machining     MQL (Mist)  Machining   Dry Machining

Type No. Diameter Flute Length O.A.L. Shank Dia.
D1 L1 L3 D2
MSB0032 R0.15 0.6 50 3
MSB0042 R0.2 0.8 50 3
MSB0052 R0.25 1.0 50 3
MSB0062 R0.3 1.2 50 3
MSB0072 R0.35 1.4 50 3
MSB0082 R0.4 1.6 50 3
MSB0102 R0.5 2.0 50 3
MSB0122 R0.6 2.4 50 3
MSB0142 R0.7 2.8 50 3
MSB0152 R0.75 3.0 50 3
MSB0162 R0.8 3.2 50 3
MSB0182 R0.9 3.6 50 3
MSB0202 R1.0 4.0 50 3
MSB0302 R1.5 6.0 50 3
