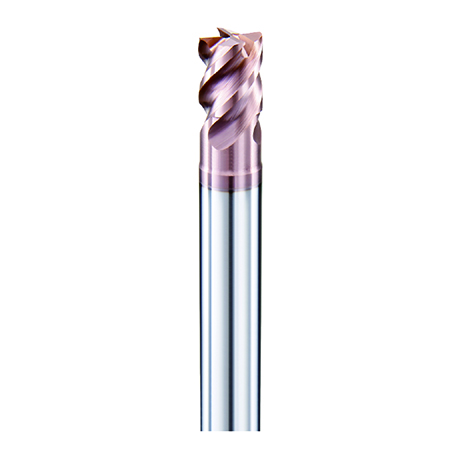

UES

HSC & HHC Series Endmill

End Mills

  • MG-super
  • 0.2
  • 螺旋角45方 00
  • 縮頸2
  • 4F 00
  • HRc65
  • 鍍層G12
Features:
    1. Special geometry "six flutes" design improve efficacy. It is suitable for surface, slot, side milling of high-hardness material.
Working Materials Hardness Level:   Good at steels with hardness up to HRc48~65. E.g. SKD61(HRc52), S136(HRc52), SKD11(HRC62) etc.
Applicable Milling Methods:  Finishing  Semi-finishing  Roughing
Applicable Coolant Ways:  MQL (Mist) Machining  Dry Machining   Emulsion Machining ,Oil Machining

Type No. Diameter Neck Dia. Flute Length Effective Length O.A.L. Shank Dia.
D1 D3 L1 L2 L3 D2
UES0604 6.0 5.80 8 13 50 6
UES0804 8.0 7.70 10 17 60 8
UES1004 10.0 9.60 12 22 75 10
UES1204 12.0 11.5 15 25 75 12
