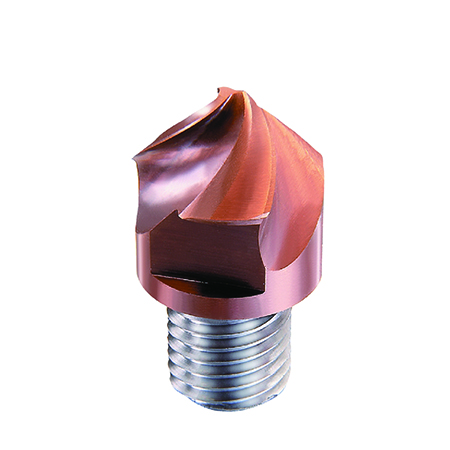

| Features: |
|
1. Special chamfering flute design is suitable for chamfer cutting of steel material hardness up to HRc55.
|
|
2. No positioning drill design in the front.
|
| Working Materials Hardness Level: Good at steels with hardness up to HRc55. E.g. S45C, P20, NAK80, SKD61(HRc52) etc. |
Applicable Milling Methods:  Finishing  Semi-finishing  Roughing |
| Applicable Coolant Ways: MQL (Mist) Machining Dry Machining , Emulsion Machining and Oil Machining |
| Type No. | Front Diameter | Diameter | Flute Length | O.A.L. | Recommended Carbide Shank | Spanner Type No. |
|---|---|---|---|---|---|---|
| D1 | D2 | L1 | L2 | |||
| X-TS0803 | 1 | 8 | 3.5 | 10.1 | X-WDEX080- | K08 |
| X-TS1003 | 2 | 10 | 4.0 | 11.1 | X-WDEX100- | K10 |
| X-TS1203 | 2 | 12 | 5.0 | 13.8 | X-WDEX120- | K12 |
| X-TS1603 | 3 | 16 | 6.5 | 14.7 | X-WDEX160- | K16 |
| X-TS2003 | 5 | 20 | 7.5 | 18.1 | X-WDEX200- | K20 |
