| Features: |
|

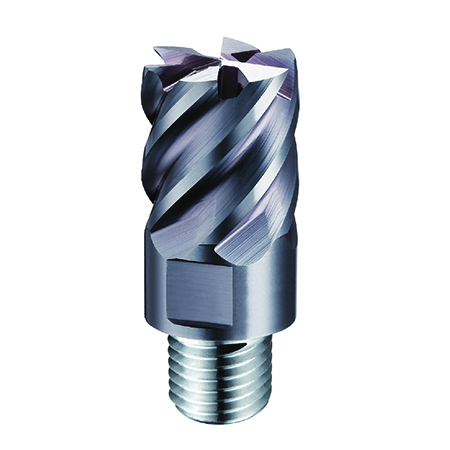

1. Special geometry and six flutes design improve efficacy. It is suitable for surface, slot, side milling of high-hardness material.
|
| Working Materials Hardness Level: Good at steels with hardness HRc48-65. E.g. SKD61(HRc52), S136(HRc52), SKD11(HRC62) etc. |
Applicable Milling Methods:  Finishing  Semi-finishing  Roughing |
| Applicable Coolant Ways: MQL (Mist) Machining Dry Machining Emulsion Machining , Oil Machining |
| Type No. | Diameter | Flute Length | Neck Dia. | O.A.L. | Thread Size | Spanner Type No. |
|---|---|---|---|---|---|---|
| D1 | L1 | D2 | L2 | M | ||
| X-UVT0806 | 8.0 | 8.0 | 7.8 | 12.1 | M5-3P | K08 |
| X-UVT1006 | 10.0 | 10.0 | 9.8 | 16.1 | M7-3P | K10 |
| X-UVT1206 | 12.0 | 12.0 | 11.7 | 20.3 | M8-3P | K12 |
| X-UVT1606 | 16.0 | 16.0 | 15.6 | 25.7 | M10-3P | K16 |
| X-UVT2006 | 20.0 | 20.0 | 19.5 | 31.1 | M12-3P | K20 |
| X-UVT2506 | 25.0 | 25.0 | 24.4 | 39.3 | M16-3P | K25 |
| X-UVT3206 | 32.0 | 32.0 | 31.2 | 48.0 | M20-3P | K32 |
