2020 New Carbide End Mill "DAN"
~Coming Soon~

新DAN鎢鋼鑽頭BANNER
DAN 5 Characteristics：
  1. Special geometry design and new G17 coating increase the tool life.
  2. By applying new production procedure, not only the end mill surface is smoother, but increases chip evacuation level.
  3. It is suitable for difficult-to-cut material. E.g. Inconel and Stainless Steel.
  4. It can be used in milling both normal and hardened steel.
  5. According to the tool life testing result provided by DHF R&D Department:

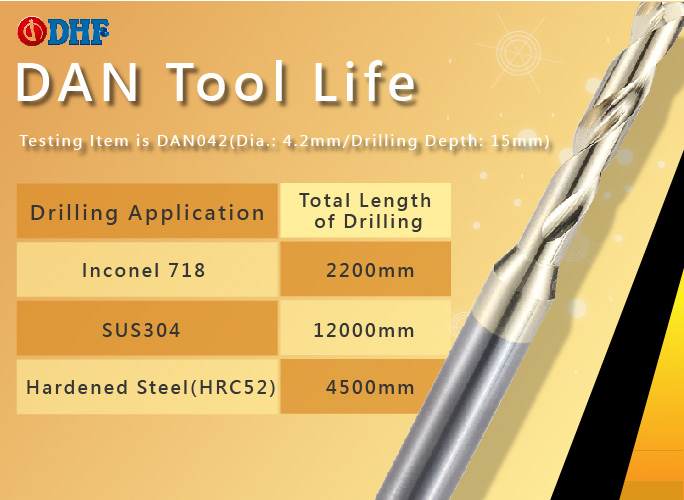

DAN Tool Life Testing

Comparison Between DAN and Well-known European End Mill Brand

Item Tool Life The Best Coolant Way Total Machinging Length Total Machining Hole
DAN042 100% Wet 1,856 mm 116 Holes
Other Brand 90% Wet 1,856 mm 116 Holes

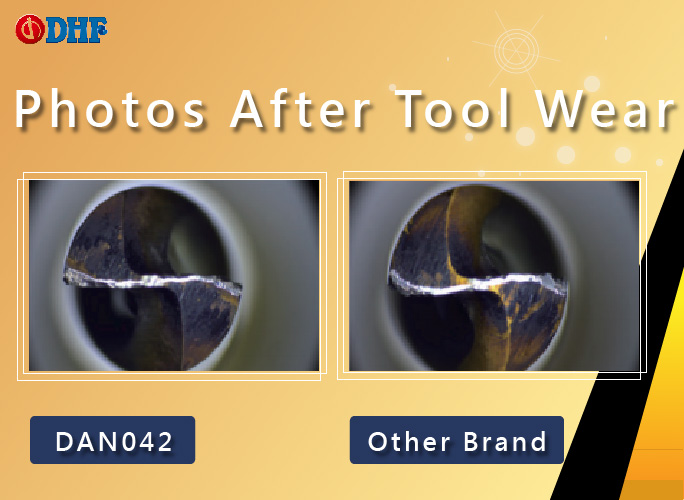

DAN Photos After Tool Wear

Comparison Between DAN042 and DAK042

Item Tool Life The Best Coolant Way Total Machinging Length Total Machining Hole
DAN042 100% Wet 3,458 mm 266 Holes
DAK042 70% Wet 3,458 mm 266 Holes

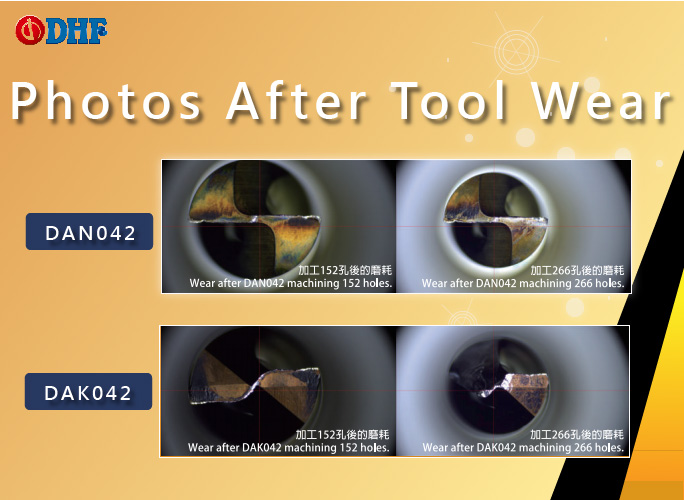

DAN042 and DAK042 Photos After Tool Wear
*** Tool broke after machining 266 holes.

To understand more information about DAN:
>>>Click Here for Catalog>>> http://www.endmill.com.tw/upload/fs/download200720161155_2729.pdf

>>>Add Inquiry>>>
DAN    http://www.endmill.com.tw/products-detail/en/345/DAN
