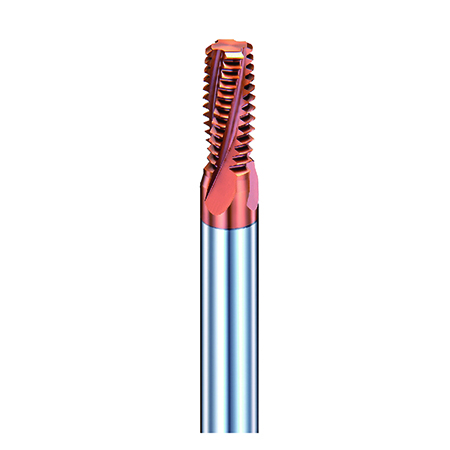

| 刀具特色: |
|
1. 公制設計, 螺紋銑刀加工效能及刀具壽命和表面光潔度皆優於一般的「螺絲攻」。
|
|
2. 「螺紋銑刀」於加工中不慎斷裂, 可輕易取出 ; 有別於「螺絲攻斷裂」、不易取出 、嚴重者工件報廢。
|
|
3.可加工「內螺紋與外螺紋」「左螺紋和右螺紋」,藉由電腦程式控制加工路徑 , 尺寸大小、精度公差、螺牙深度、及特殊孔徑螺牙, 皆可自由應 用。
|
| 適用切削材料: 適用於HRc52以下鋼材料加工,例如: SUS304 / SCM440 / S45C/ P20 / NAK80 等。 |
適用切削方式:  螺紋銑削 |
適用冷卻方式: 水溶性、油性切削  油霧、乾式氣冷 |
| 型號 | 直徑 | 刃長 | 全長 | 柄徑 | 刃數 | 螺距 | 螺牙 |
|---|---|---|---|---|---|---|---|
| D1 | L1 | L3 | D2 | Flute | Pitch | M | |
| TW02305M3050 | 2.3 | 5.2 | 40 | 6 | 3 | 0.5 | M3 |
| TW02307M3050 | 2.3 | 7.2 | 40 | 6 | 3 | 0.5 | M3 |
| TW03007M4070 | 3.0 | 7.28 | 40 | 6 | 3 | 0.7 | M4 |
| TW03010M4070 | 3.0 | 10.08 | 40 | 6 | 3 | 0.7 | M4 |
| TW03809M5080 | 3.8 | 9.12 | 50 | 6 | 3 | 0.8 | M5 |
| TW03812M5080 | 3.8 | 12.32 | 50 | 6 | 3 | 0.8 | M5 |
| TW04511M6100 | 4.5 | 10.4 | 60 | 6 | 3 | 1.0 | M6 |
| TW04515M6100 | 4.5 | 14.4 | 60 | 6 | 3 | 1.0 | M6 |
| TW06014M8125 | 6.0 | 14.25 | 60 | 8 | 3 | 1.25 | M8 |
| TW06019M8125 | 6.0 | 19.25 | 60 | 8 | 3 | 1.25 | M8 |
| TW07517M10150 | 7.5 | 17.1 | 60 | 8 | 3 | 1.5 | M10 |
| TW07525M10150 | 7.5 | 24.6 | 75 | 8 | 3 | 1.5 | M10 |
| TW08020M12175 | 8.0 | 19.95 | 60 | 8 | 3 | 1.75 | M12 |
| TW08029M12175 | 8.0 | 28.7 | 75 | 8 | 3 | 1.75 | M12 |
| TW09020M12175 | 9.0 | 19.95 | 75 | 10 | 4 | 1.75 | M12 |
| TW09029M12175 | 9.0 | 28.7 | 75 | 10 | 4 | 1.75 | M12 |
| TW10027M14200 | 10.0 | 26.8 | 75 | 10 | 4 | 2.0 | M14 |
| TW10039M14200 | 10.0 | 38.8 | 100 | 10 | 4 | 2.0 | M14 |
| TW12027M16200 | 12.0 | 26.8 | 80 | 12 | 4 | 2.0 | M16 |
| TW12039M16200 | 12.0 | 38.8 | 100 | 12 | 4 | 2.0 | M16 |
| TW12031M18250 | 12.0 | 31 | 100 | 12 | 4 | 2.5 | M18 |
| TW12045M18250 | 12.0 | 43.5 | 100 | 12 | 4 | 2.5 | M18 |
| TW14034M20250 | 14.0 | 33.5 | 100 | 14 | 4 | 2.5 | M20 |
| TW14049M20250 | 14.0 | 48.5 | 100 | 14 | 4 | 2.5 | M20 |
| TW16041M24300 | 16.0 | 40.2 | 100 | 16 | 5 | 3.0 | M24 |
| TW16059M24300 | 16.0 | 58.2 | 120 | 16 | 5 | 3.0 | M24 |
