| Features: |
|

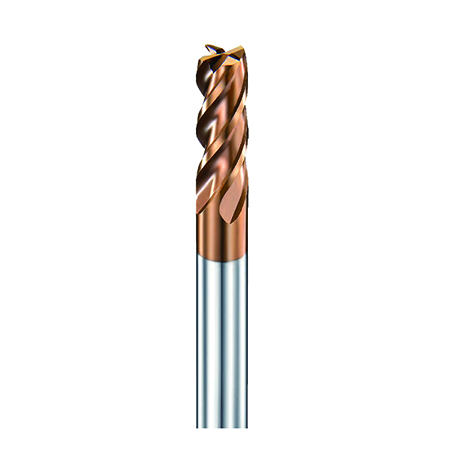

1. G7 coating is specially designed for milling steel with higher carbon content, and it has long tool life.
|
|
2. The 4 flutes flat endmill design is suitable for general steel up to HRc45.
|
| Working Materials Hardness Level: Good at steel material (HRc 18~45). E.g. S45C,SUS304, P20,NAK80 etc. |
Applicable Milling Methods:  Finishing,Semi-finishing and Roughing |
Applicable Coolant Ways: Emulsion and Oil Machining  MQL (Mist) and Dry Machining |
| Type No. | Diameter | Flute Length | O.A.L. | Shank Dia. |
|---|---|---|---|---|
| D1 | L1 | L3 | D2 | |
| CDE0204 | 2.0 | 6 | 50 | 4 |
| CDE0254 | 2.5 | 8 | 50 | 4 |
| CDE0304 | 3.0 | 8 | 50 | 4 |
| CDE0404 | 4.0 | 11 | 50 | 4 |
| CDE0504 | 5.0 | 13 | 50 | 6 |
| CDE0604 | 6.0 | 16 | 50 | 6 |
| CDE0804 | 8.0 | 20 | 60 | 8 |
| CDE1004 | 10.0 | 25 | 75 | 10 |
| CDE1204 | 12.0 | 30 | 75 | 12 |
| CDE1604 | 16.0 | 40 | 100 | 16 |
